Large-format schematic

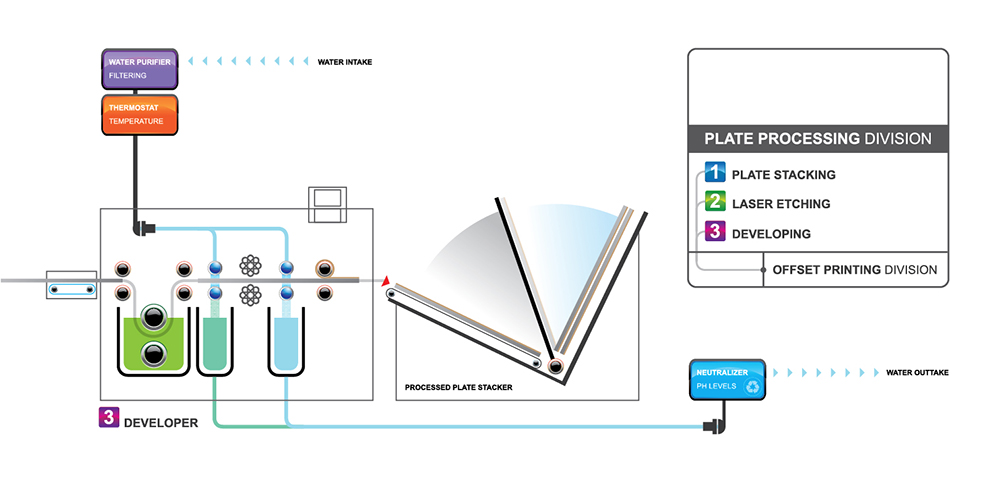

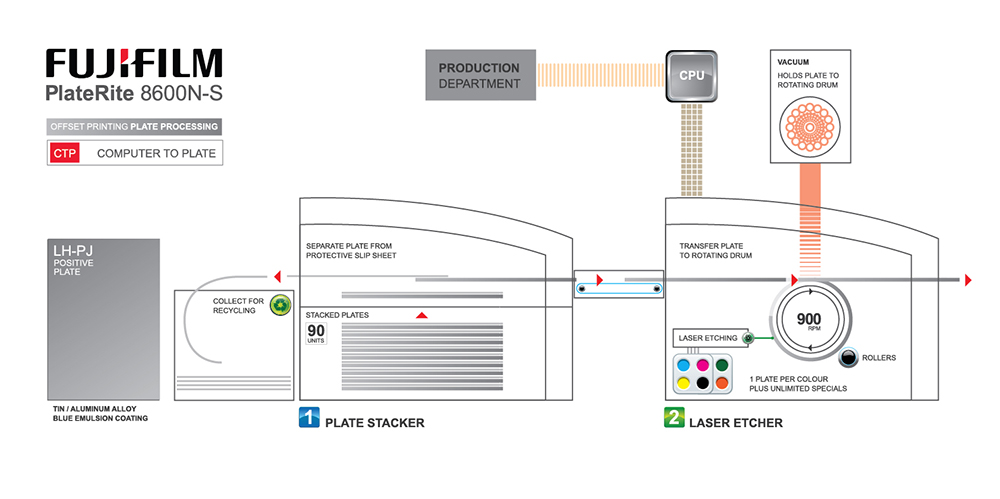

To celebrate the arrival of a new state of the art offset plate processor, I was commissioned to illustrate a 2 panel diagram that visually explains how this magnificent machine works.

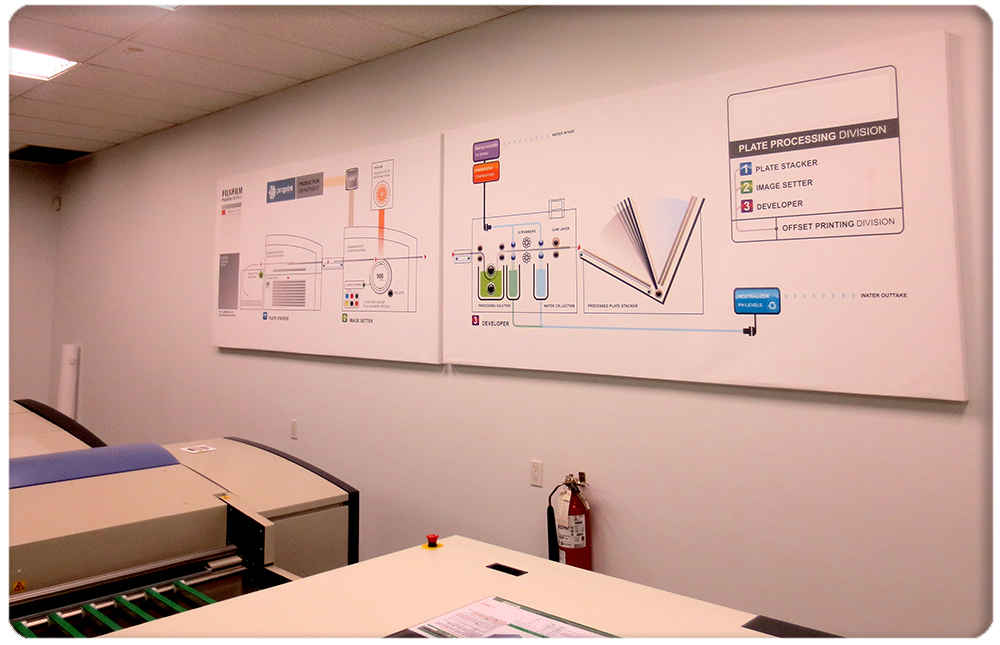

At 14 feet in length and 4 feet high, these mounted panels sit directly above the equipment. This project required technical study of its operation along with an extensive interview with the machine’s operator.
Overview

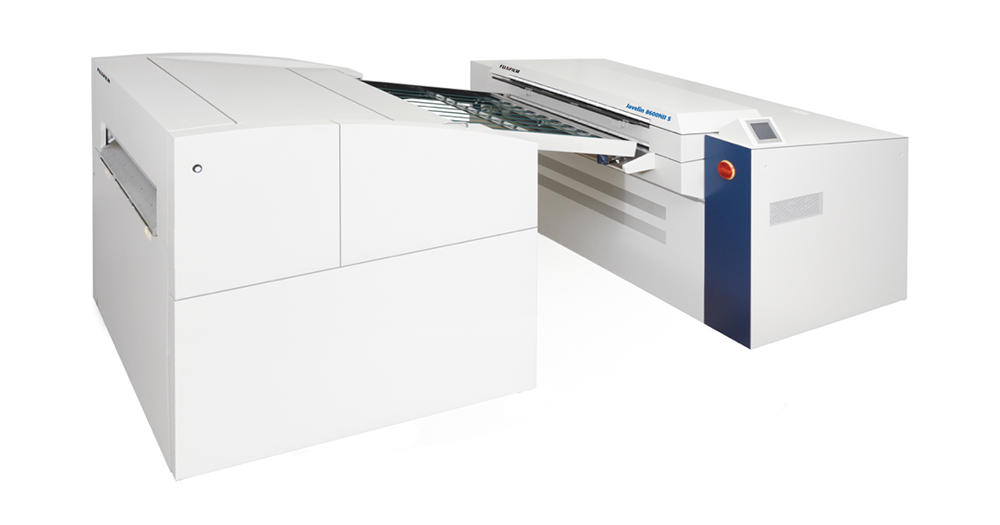

The Fujifilm PlateRite 8600N-S is a B1-size thermal Computer-to-Plate (CTP) recorder with a 64-channel light source designed for high-speed, high-quality output in offset printing. Key features include reliable operation, a high-speed rotating drum, and options for automated plate loading and inline punching for superior register accuracy. It can output up to 23 B1-size plates per hour and supports various plate sizes and resolutions, making it a versatile and productive tool for modern printing presses.
Key Features of the Fujifilm PlateRite 8600N-S:
High Productivity:
The 8600N-S, with its 64-channel light source and high-speed rotating drum, can output up to 23 B1-size plates per hour.
Versatility:
It can handle 8-up (B1) and smaller plates, supporting a wide range of requirements for sheetfed and web offset presses.
Precision Imaging:
The system features advanced fiber laser diode exposure heads, delivering superior imaging precision and quality for excellent screening reproduction.
Intelligent Auto Balance:
A unique auto-balance system allows for quick and seamless switching between plate sizes without manual adjustments, optimizing the recording drum for different plates.
Inline Punching:
An industry-leading inline punching system performs two types of punching simultaneously, ensuring perfect plate register on press and significantly reducing makeready time and human error.
Modularity and Upgradeability:
The system is designed for upgradeability, allowing businesses to start with manual plate loading and progress to higher productivity options in the field.
